Analog distortion guitar pedal
Published on Aug 3, 2025 |
0 Likes
edwin14400519
- Kenya
Description
This is a mono analog guitar distortion pedal.
It contains a tunable low pass filter with a BW of 2KHz, gain ranging from 20dB to 40dB, an NPN transistor amplifier stage, an analog clipping circuit for waveform distortion and an output volume control knob.
Input and output is fed by a 6.35mm TRS audio jack.
Github
Tools used
- Kicad
Project Files (3)
| Filename | Type | Date Modified | |
|---|---|---|---|

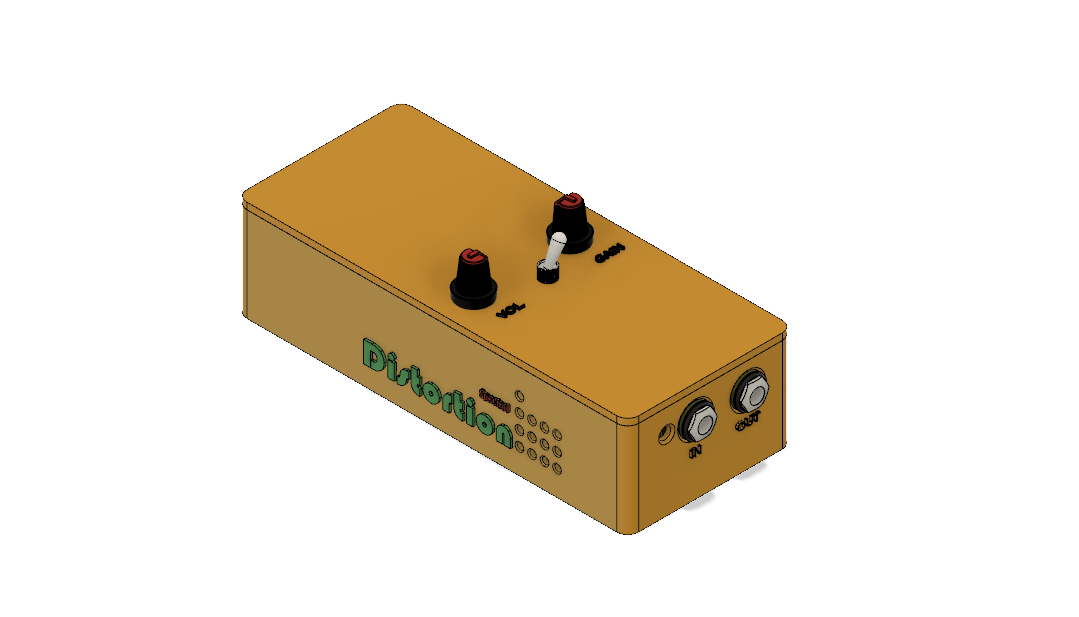

| casing.png | PNG | Aug 3, 2025 | |
| guitar-pedal.png | PNG | Aug 3, 2025 | |

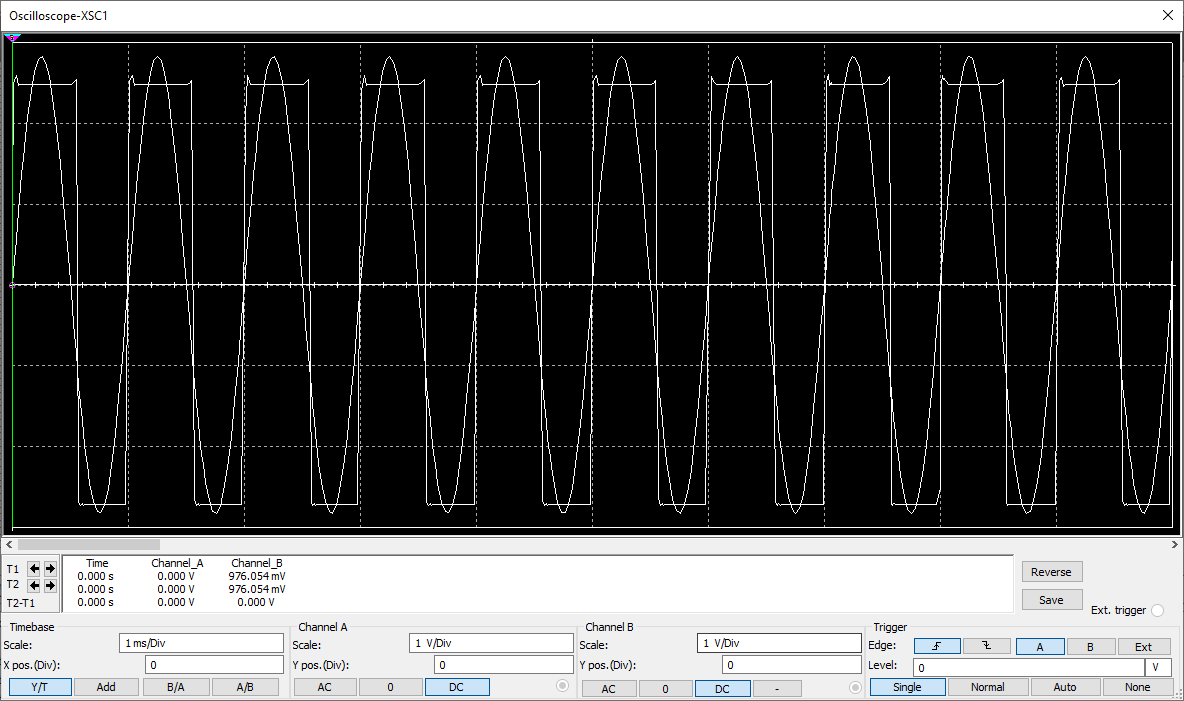

| simulation-1.png | PNG | Aug 3, 2025 |
Specifications
2-layer board
0
0
0
Published: Aug 3, 2025
Published: Aug 3, 2025
The zip bundles together all the project files including schematic files, gerber files, 3D designs,
BOM, drill files, datasheets etc.
