Discrete digital clock
Published on Aug 3, 2025 |
0 Likes
edwin14400519
- Kenya
Description

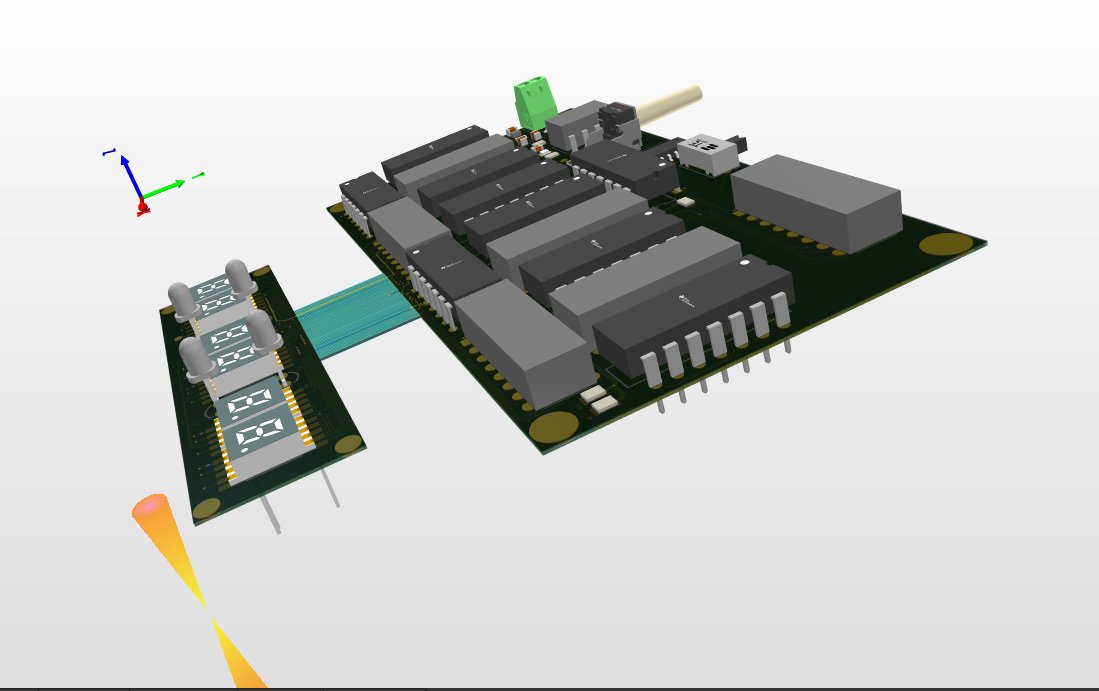

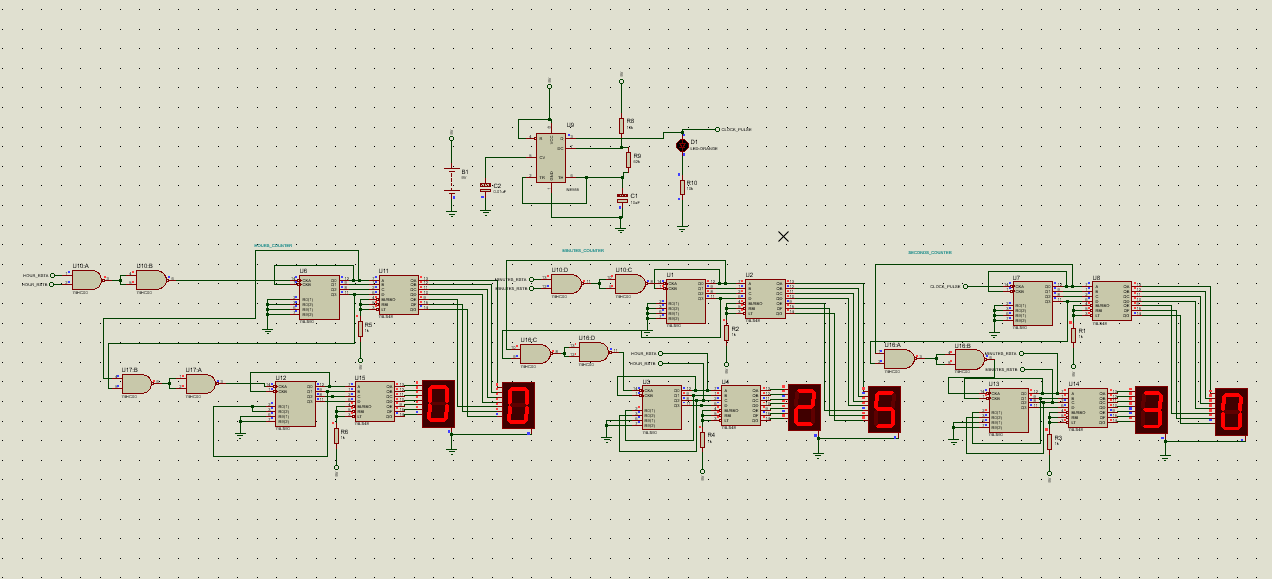

Simple digital clock built with discrete ICs and no-code
Github simulation link
Tools used
- Altium Designer
Project Files (4)
| Filename | Type | Date Modified | |
|---|---|---|---|
| digital-clock-2.jpg | JPEG | Aug 3, 2025 | |
| digital-clock-4.jpg | JPEG | Aug 3, 2025 | |
| digital-clock-1.jpg | JPEG | Aug 3, 2025 | |
| digital-clock-3.jpg | JPEG | Aug 3, 2025 |
Specifications

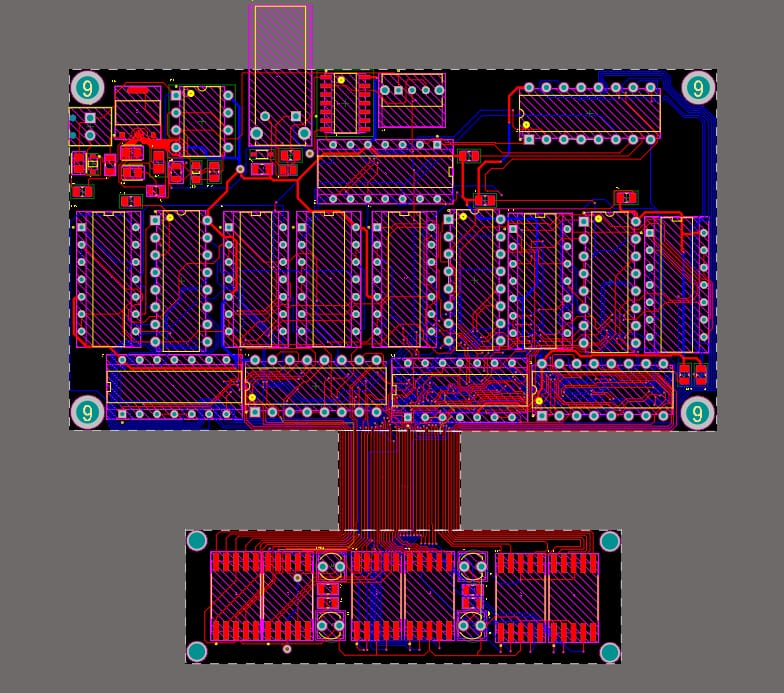

2-layer board, FPC
0
0
0
Published: Aug 3, 2025
Published: Aug 3, 2025
The zip bundles together all the project files including schematic files, gerber files, 3D designs,
BOM, drill files, datasheets etc.
